Telefonika - Outddor, Self-supporting
ADSS-XXOTKtsdD, ADSS-XXOTKtcdD

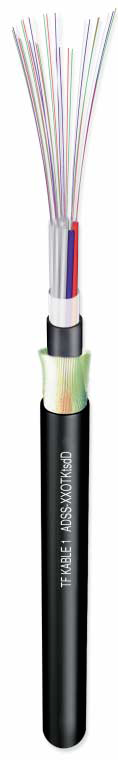

Outdoor fibre optic cable with multiple optical fibres in a loose tube, reinforced, selfsupported
STANDARD:
- ZN-EK-107.01

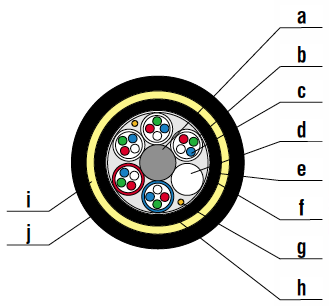

CONSTRUCTION ADSS-XXOTKtsdD...kN:
| (a) CENTRAL STRENGTH MEMBER: | dielectric FRP rod with or without PE jacketi, |
| (b) TUBE: | loose tube fi lled with a thixotropic jelly |
| (c) OPTICAL FIBRES: | singlemode (J), singlemode with non-zero dispersion (Jn), gradient multimode (G/50), gradient multimode (G/62,5) |
| (d) FILLER: | polyethylene |
| (e) CABLE CORE: | 6, 8, 12, 18 or 24 tubes or tubes and fi llers stranded around central strength member |
| (f) WATER PROTECTION: | dry |
| (g) RIPCORD: | 2 |
| (h) INNER SHEATH: | polyethylene |
| (i) REINFORCEMENT: | aramid yarns |
| (j) OUTER SHEATH |
polyethylene, black |
TYPES OF CABLES:
ADSS-XXOTKtsd...kN
- All dielectric self supported (ADSS-),
- with outer and inner polyethylene sheath (XX),
- optical fi bre cable (OTK),
- loose tube with dry core sealing (ts),
- fully dielectric (d),
- reinforced with aramid yarn (D),
- working tension (...kN).
CONSTRUCTION ADSS-XXOTKtcdD...kN:
| (a) OPTICAL FIBRES: | jednomodowe (J), jednomodowe z niezerową przesuniętą dyspersją (Jn), wielomodowe (G/50), wielomodowe (G/62,5) |
| (b) COLOUR WRAPPING | colour wrapping filament |
| (c) TUBE: | central tube with optical fibres filled |
| (d) FILLING: | hydrophobic jelly |
| (e) RIPCORD: | 2 |
| (f) REINFORCEMENT: | aramid yarn |
| (g) OUTER SHEATH: | polyethylene, black |
OPTIONS:
- option 1 - ADL (All Dielectric Lashed Cable)
TYPES OF CABLES:
ADSS-XXOTKtcd...kN
- self-supporting, multitube (ADSS-),
- with outer and inner polyethylene sheath (XX),
- optical fi bre cable (OTK),
- of the central tube construction, jelly filled (tc),
- fully dielectric (d),
- reinforced with aramid yarn (D),
- working tension (...kN).
PERFORMANCE PARAMETERS
• fully dielectric
• resistant to electromagnetic interferences
• protected from moisture and longitudinal water penetration
• through the use of central dielectric strength member and aramid yarns reinforcement on the core with hot melt adhesive, cables are resistant to longitudinal and transverse stresses
• the outer sheath is resistant to abrasion, UV and stress corrosion cracking
• the marking and the metric overprint are printed on the outer sheath
• the marking can also be tailored to meet customer’s requirements
APPLICATION
• in telecommunication local, metropolitan and wide area networks in any spatial configuration
• for installation on telegraph poles, low and medium voltage power lines or railway traction
• can be installed near high voltage cable lines
MINIMUM BENDING RADIUS:
- single 15 x cable outer diameter
- multiple 20 x cable outer diameter
Permissible pulling force during installation od ADSS cable: 15% RTS
RANGE OF TEMPERATURES:
- installation: -10°C ÷ +50°C
- transport and storrage: -40°C ÷ +70°C
- operating: -40°C ÷ +70°C
