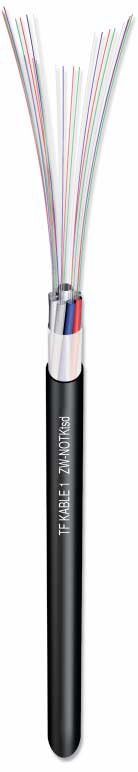

ZW-NOTKtsd, W-YnOTKtsd, W-YOTKtsd
- Universal fibre optic cable with multiple optical fibres in a loose tube, flame retardant
STANDARD:
ZN-TF-11:2001; ZN-EK-103

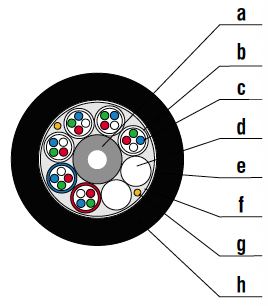

CONSTRUCTION:
| (a) CENTRAL STRENGTH MEMBER: | dielectric FRP rod with or without PE jacket, |
| (b) TUBE: | loose tube filled with a thixotropic jelly |
| (c) OPTICAL FIBRES: | singlemode (J), singlemode with non-zero dispersion (Jn), gradient multimode (G/50), gradient multimode (G/62,5) |
| (d) FILLER: | polyethylene |
| (e) CABLE CORE: | 6, 8, 12, 18 or 24 tubes or tubes and fi llers stranded around central strength member |
| (f) SEALING: | dry |
| (g) RIPCORD: | 2 |
| (h) SHEATH: | halogen free fl ame retardant, black |
OPTIONS:
option 1 - the core filled with hydrophobic jelly
option 2 - flame-retardant polyvinyl
option 3 - polyvinyl chloride
CABLE TYPES:
ZW-NOTKtsd (recommended for use)
▪ indoor/outdoor (ZW),
▪ with a halogen free flame retardant sheath (N),
▪ optical fibre cable (OTK),
▪ loose tube with dry core sealing (ts),
▪ fully dielectric (d).
W-YnOTKtsd (option 2)
▪ indoor (W-),
▪ with flame-retardant polyvinyl (Yn),
▪ optical fibre cable (OTK),
▪ loose tube with dry core sealing (ts),
▪ fully dielectric (d).
W-YOTKtd (option 1, 3)
▪ indoor (W-),
▪ with polyvinyl chloride (Y),
▪ optical fibre cable (OTK),
▪ the core filled with hydrophobic jelly (t),
▪ fully dielectric (d).
APPLICATION:
- Cables are designed for digital and analogue transmission in the whole range of the optical band, applied to all types of systems for: data, audio and video transmission.
Cables are designed for:
• indoor installations
• Indoor, for connections between optoelectronic devices and distributing networks inside buildings.
PROPERTIES:
Distribution cables with tight tubes are:
• Fully dielectric
• Resistant to electromagnetic interference
• Flexible and easy to install
• Can be installed close to the power lines
• Suitable for all types of cable connectors
Metric overprint and cable marking situated on the jacket. Optional marking can be placed on the jacket upon request.
RANGE OF TEMPERATURES:
▪ installation: -15°C ÷ +60°C
▪ transportu and storage: -40°C ÷ +70°C
▪ operation: -40°C ÷ +70°C

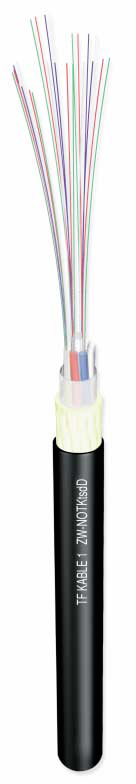

ZW-NOTKtsdD, W-YnOTKtsdD
- Universal fibre optic cable with multiple optical fibres in a loose tube, reinforced, flame retardant
STANDARD:
ZN-TF-11:2001; ZN-EK-103

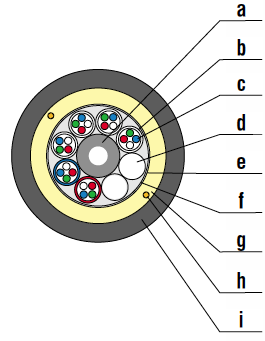

CONSTRUCTION:
| (a) CENTRAL STRENGTH MEMBER: | dielectric FRP rod with or without PE jacket, |
| (b) TUBE: | loose tube fi lled with a thixotropic jelly |
| (c) OPTICAL FIBRES: | singlemode (J), singlemode with non-zero dispersion (Jn), gradient multimode (G/50), gradient multimode (G/62,5) |
| (d) FILLER: | polyethylene |
| (e) CABLE CORE: | 6, 8, 12, 18 or 24 tubes or tubes and fi llers stranded around central strength member |
| (f) SEALING: | dry |
| (g) REINFORCEMENT: |
aramid yarns |
| (h) RIPCORD: | 2 |
| (i) SHEATH: | halogen free flame retardant, black |
OPTIONS:
option 1 - flame-retardant polyvinyl
option 2 - polyvinyl chloride
option 3 - the core filled with hydrophobic jelly
CABLE TYPES:
ZW-NOTKtsdD (zalecany do stosowania)
▪ indoor/outdoor (ZW-),
▪ with a halogen free flame retardant sheath (N),
▪ optical fibre cable (OTK),
▪ central tube (ts),
▪ fully dielectric (d),
▪ reinforced with aramid yarn (D).
W-YnOTKtsdD (opcja 1)
▪ indoor (W-),
▪ with flame-retardant polyvinyl (Yn),
▪ optical fibre cable (OTK),
▪ central tube (ts),
▪ fully dielectric (d),
▪ reinforced with aramid yarn (D).
W-YOTKtdD (opcja 2, 3)
▪ indoor (W-),
▪ with polyvinyl chloride (Y),
▪ optical fibre cable (OTK),
▪ the core filled with hydrophobic jelly (t),
▪ fully dielectric (d),
▪ reinforced with aramid yarn (D).
APPLICATION:
Cables are designed for digital and analogue transmission in the whole range of the optical band, applied to all types of systems for: data, audio and video transmission.
Cables are designed for:
• indoor installations
• Indoor, for connections between optoelectronic devices and distributing networks inside buildings.
PROPERTIES:
Distribution cables with tight tubes are:
• Fully dielectric
• Resistant to electromagnetic interference
• Flexible and easy to install
• Can be installed close to the power lines
• Suitable for all types of cable connectors
RANGE OF TEMPERATURES:
▪ installation: -15°C ÷ +60°C
▪ transportu and storage: -40°C ÷ +70°C
▪ operation: -40°C ÷ +70°C
