Z-XOTKtsdD, Z-XzOTKtD

  • Outdoor fibre optic cable with multiple optical fibres in a loose tube, duct, reinforced

STANDARD:

ZN-TF-11:2001; ZN-EK-103

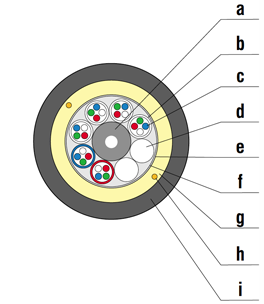

CONSTRUCTION:

(a) CENTRAL STRENGTH MEMBER:
dielectric FRP rod with or without PE jacket,
(b) TUBE: loose tube filled with a thixotropic jelly
(c) OPTICAL FIBRES: singlemode (J), singlemode with non-zero dispersion (Jn), gradient mulimode (G/50), gradient mulimode (G/62,5)
(d) FILLER: polyethylene
(e) CABLE CORE: 6, 8, 12, 18 or 24 tubes or tubes and fillers stranded around central strength member
(f) SEALING: dry
(g) REINFORCEMENT: aramid yarns
(h) RIPCORD: 2
(i) SHEATH: polyethylene, black




OPTIONS:

▪ option 1 - the core filled with hydrophobic jelly

▪ option 2 - moisture barrier made of Aluminium tape under the sheath




TYPES OF CABLES:

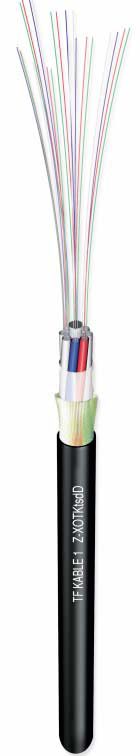

Z-XOTKtsdD

▪ outdoor (Z),

▪ with a polyethylene sheath (X),

▪ optical fibre cable (OTK),

▪ loose tube with dry core sealing (ts),

▪ fully dielectric (d),

▪ reinforced with aramid yarn (D).

Z-XzOTKtD (option 1,2)

▪ outdoor (Z),

▪ with moisture barrier made of Aluminium tape under the sheath (Xz),

▪ optical fibre cable (OTK),

▪ the core filled with hydrophobic jelly (t),

▪ reinforced with aramid yarn (D).




PERFORMANCE PARAMETERS:

• fully dielectric (except for cables with Al moisture barrier)
• resistant to electromagnetic interferences
• protected from moisture and longitudinal water penetration
• through the use of central dielectric strength member and aramid yarns reinforcement on the core with hot melt adhesive, cables are resistant to longitudinal and transverse stresses
• the outer sheath is resistant to abrasion, UV and stress corrosion cracking
• the marking and the metric overprint are printed on the outer sheath
• the marking can also be tailored to meet customer’s requirements




APPLICATION:


• in telecommunication local, metropolitan and wide area networks in any spatial configuration
• for laying in primary and secondary cable ducts
• for installation on telegraph poles, low and medium voltage power lines or railway traction
• can be laid near high voltage cable lines




TEMPERATURE RANGES:

▪ installation: -15°C ÷ +60°C

▪ transport and storage: -40°C ÷ +70°C

▪ operaion: -40°C ÷ +70°C

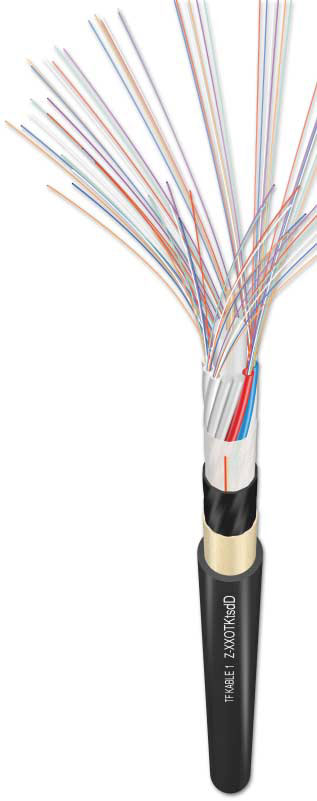

Z-XXOTKtsdD

Outdoor fibre optic cable with multiple optical fibres in a loose tube, duct, reinforced




STANDARD:

ZN-TF-11:2001; ZN-EK-103

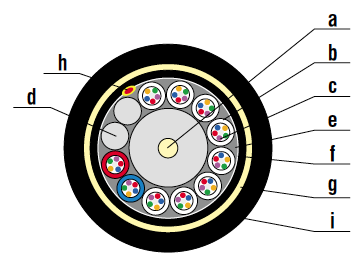

BUDOWA:

(a) CENTRAL STRENGTH MEMBER:
dielectric FRP rod with or without PE jacket,
(b) TUBE: loose tube fi lled with a thixotropic jelly
(c) OPTICAL FIBRES: singlemode (J), singlemode with non-zero dispersion (Jn), gradient multimode (G/50), gradient multimode (G/62,5)
(d) FILLER: polyethylene
(e) CABLE CORE: 6, 8, 12, 18 or 24 tubes or tubes and fi llers stranded around central strength member
(f) SEALING: dry
(g) REINFORCEMENT: aramid yarns
(h) RIPCORD: 2
(i) SHEATH: polyethylene, black




OPTIONS:

▪ option 1 - core filled with hydrophobic jelly




TYPES OF CABLES:

Z-XXOTKtsdD

▪ outdoor (Z),

▪ with outer and inner polyethylene sheath (XX),

▪ optical fibre cable (OTK),

▪ loose tube with dry core sealing (ts),

▪ dielectric (d),

▪ reinforced with aramid yarn (D).

Z-XXOTKtdD (opcja 1)

▪ outdoor (Z),

▪ with outer and inner polyethylene sheath (XX),

▪ optical fibre cable (OTK),

▪ with core filled with hydrophobic jelly (t),

▪ dielectric (d),

▪ reinforced with aramid yarn (D).


PERFORMANCE PARAMETERS:

• fully dielectric (except for cables with Al moisture barrier)
• resistant to electromagnetic interferences
• protected from moisture and longitudinal water penetration
• through the use of central dielectric strength member and aramid yarns reinforcement on the core with hot melt adhesive, cables are resistant to longitudinal and transverse stresses
• the outer sheath is resistant to abrasion, UV and stress corrosion cracking
• the marking and the metric overprint are printed on the outer sheath
• the marking can also be tailored to meet customer’s requirements


APPLICATION:


• in telecommunication local, metropolitan and wide area networks in any spatial configuration
• for laying in primary and secondary cable ducts
• for installation on telegraph poles, low and medium voltage power lines or railway traction
• can be laid near high voltage cable lines


TEMPERATURE RANGES:

▪ installation: -15°C ÷ +60°C

▪ transport and storage: -40°C ÷ +70°C

▪ operaion: -40°C ÷ +70°C
