Q2000 FO MONITOR System is a set of assistive devices to maintain and oversee the optical access and backbone networks. The primary task of the system is permanent monitoring of the state of fibre network by automatically measuring the power level of optical signal at the beginning and end of a fiber optic line. Any change of network parameters for a specified value trigger an alarm. The whole process is managed by the SCADA system. Its main functions consist of collecting actual data (measurements), its visualization, alarming and data archiving.

Properties:

• Single and multimode fiber networks monitoring,
• Modular structure allows free configuration,
• Access to distributed network via Internet (TCP / IP),
• Redundant power supply.

Application:

• Telecommunication, CATV, Monitoring, Industry, LAN, MAN, WAN, Control Engineering.

Operational scheme:

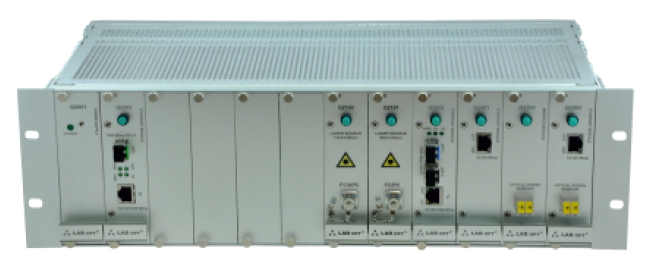

Photos:

How to order:

Q2001	Chassis 19” 3U 12 ports, 1 port for power supply Q2601 module
Q2002	Chassis 19” 3U 12 ports, 2 ports for power supply Q2601 module
Q2401	Ethernet module 10/100TX
Q2402	Ethernet module 10/100TX + optical power monitor
Q2202	Optical power monitor module
Q2601	Power supply module 90 ÷ 254 AC, 12V 8,3A
Q2403	GPRS module
Q2801	GSM SMS module
Q2501	Ethernet media converter 10/100/1000TX-SFP SX/LX
Q2502	Ethernet switch 1x10/100/1000TX + 2xSFP SX/LX
Q2010	FO Monitor Application

Basic function:

• Single and multimode fiber networks monitoring,
• Monitoring a condition of receivers and transmitters (only by using transmission signal to network monitoring),
• Overstep selected alarming levels,
• Archiving data by the MySQL database,
• Measurement results visualized on line graphs,
• Events’ notifications via EMAIL, SMS,
• Network visualization by GOOGLE Maps.

Standard equipment:

• Power supply cable,
• Mounting screw M6 (4 pcs),
• Instruction (1 pc).

Information:

Data sheet does not show all of Q2000 possibilities. Each fiber-optic network is characterized by different parameters. The Q2000 system is universal and can be adapted to work in different environments. Welcome to attend the system presentation. This is the best way to acquaint with the  measurements’ possibilities offered by the system Q2000.
